Pixel WS2815 LED Strip:
- 5050 RGB LEDÂ with WS2815 IC built-in.
- 1 IC drivers 1 LED, each LED is programmable and cuttable.
- Dual-signal wires version, signal break-point continuous transmission
- Waterproof IP rating: IP20, IP54, IP65, IP67, (IP65 are with 3M tape on the backside).
- Customized service available, 3 Years Warranty.
Model No | LED Density | Pixel Qty | IC Model | Work Voltage | Power | Color | Minimum cut length |
---|
NSS-2815S30-5V | 30 led/m | 30pcs/m | WS2815 | 12V DC | 9w/m | RGB | 1 LEDs 33.3mm |

IC Model | WS2815 | Â | LED Density | 30 Â pcs/m |
Cuttable Segments | Â Â Â 1 Led/33.3Â mm | Measured Power (w/m) | 9w/m |
PCB Thickness | 3 oz | Colour | RGB Dream Color |
PCB Width | 10 mm | IP Grade | IP20/IP54/IP65/IP67/IP68 |
Max Run Length | 10 m | Warranty | 3 Years |
Reel Length | 5 m | Certification | UL CE Â RoHS |
Model No | LED Density | Pixel Qty | IC Model | Work Voltage | Power | Color | Minimum cut length |
---|
NSS-2815S60-5V | 60 led/m | 60pcs/m | WS2815 | 12V DC | 18 w/m | RGB | 1 LEDs 16.7mm |

IC Model | WS2815 | | LED Density | 60 pcs/m |
Cuttable Segments | Â Â Â 1 Led/s 16.7mm | Measured Power (w/m) | 18w/m |
PCB Thickness | 3 oz | Colour | RGB Dream Color |
PCB Width | 10 mm | IP Grade | IP20/IP54/IP65/IP67/IP68 |
Max Run Length | 5 m | Warranty | 3 Years |
Reel Length | 5 m | Certification | UL CE Â RoHS |
Model No | LED Density | Pixel Qty | IC Model | Work Voltage | Power | Color | Minimum cut length |
NSS-2815S144-5V | 144 led/m | 144pcs/m | WS2815 | 12V DC | 43.2w/m | RGB | 1 LEDs 6.9mm |

 LED Type | 5050 |  Input Voltage | 12V DC |
 IC Model | WS2815 |  LED Density | 144 led/m |
 Cuttable Segments | 1 LEDs 6.9mm |  Power | 43.2w/m |
 PCB Thickness |  3 OZ |  Colour | RGB |
 PCB Width | 12mm |  IP Grade | IP20/IP54/IP65/IP67/IP68 |
 Max Run Length | 5 m |  Warranty | 3 Years |
 Reel Length | 5 m |  Certification | UL CE  RoHS BIS |
Digital RGB WS2815 led strip light |
- 1LED 1Pixel, Dual-signal wires version, signal break-point continuous transmission.

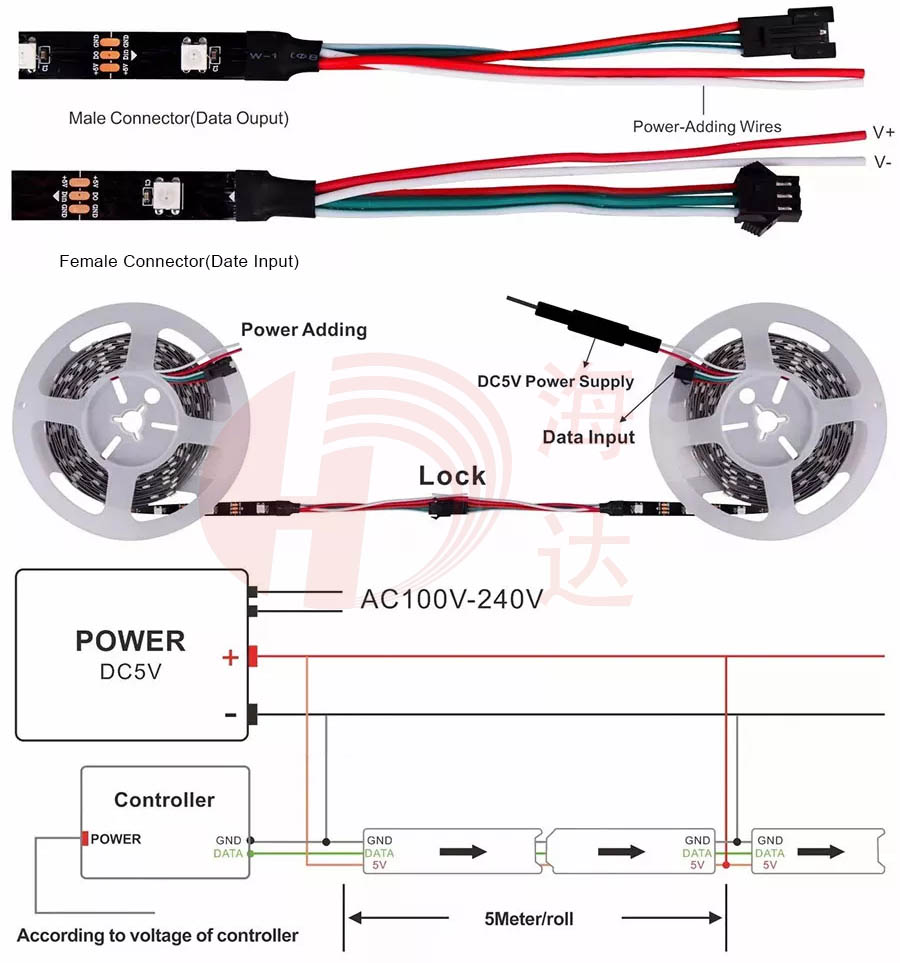

Connection and Wiring Diagram |



- IP20, IP54, IP65 with 3M adhesive tape on the backside.
- IP67 and IP68 are without 3M adhesive tape.
- IP20: Non-waterproof
- IP54: Paint a thin layer of silicon glue on the cover
- IP65: Waterproof in silicon coating
- IP67: Waterproof in silicon tube
- IP68: Waterproof in sealed silicon tube


Advertising Lighting, KTV Home Decoration, Electronic DIY, Pixel Screen Production etc.
